Flanged Disc Harrow Bearing Unit FD209RA FD209RJA DHU1-3/4R-209 DHU491A ST427 ST490 ST627

Disc Harrow Bearings Applications

Flanged Disc Harrow Bearing Unit FD209RA FD209RJA DHU1-3/4R-209 DHU491A ST427 ST490 ST627
Description
Technical data
Outline
PDFdownload

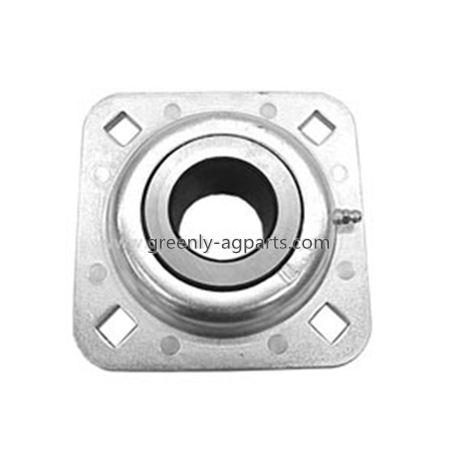

Product Name: FD209RA/FD209RJA/DHU1-3/4R-209/DHU491A/ ST427/ST490/ ST627 Flanged disc harrow bearing unit
Part No.: FD209RA
Fits IHC MODELS:37,46,48,60,61,120,122,130,132,150,330,340,350,370,470,475,480,485,490,496 w/o Rock Flex, 8 IN A CASE 610,760,3800, 3850,3900,3950 Case/IH disc harrows,Replace:
BCA/FEDERAL MOGUL: FD209RA or FD209RJA
FAFNIR/TORRINGTON: DHU1-3/4R-209 or DHU491A
IH#: ST427, ST490, ST627
DIMENSIONS:
BORE: 1-3/4" ROUND
BOLT TO BOLT: 5" (BOTTOM LEFT TO TOP RIGHT)

Our heavy duty disc harrow bearings are made with tripple lip seals to protect from corrosive environments. This seal is a one piece shroud cover with three molded contact seals. Standard relubrication feature is drilled hole in groove.

Hot keywords:high quality Flanged disc harrow bearing unit
